Asus  |  SKU: 90MB1FW0-M0EAY0
15% off

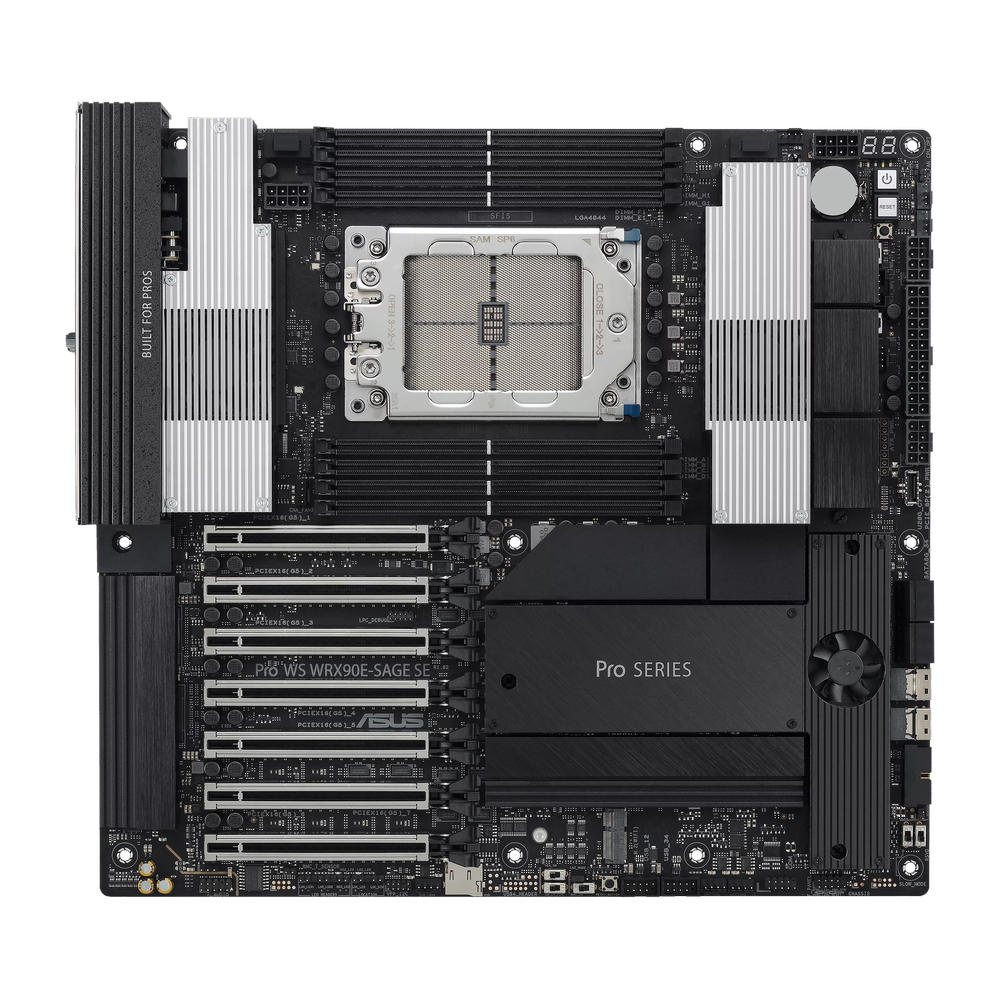

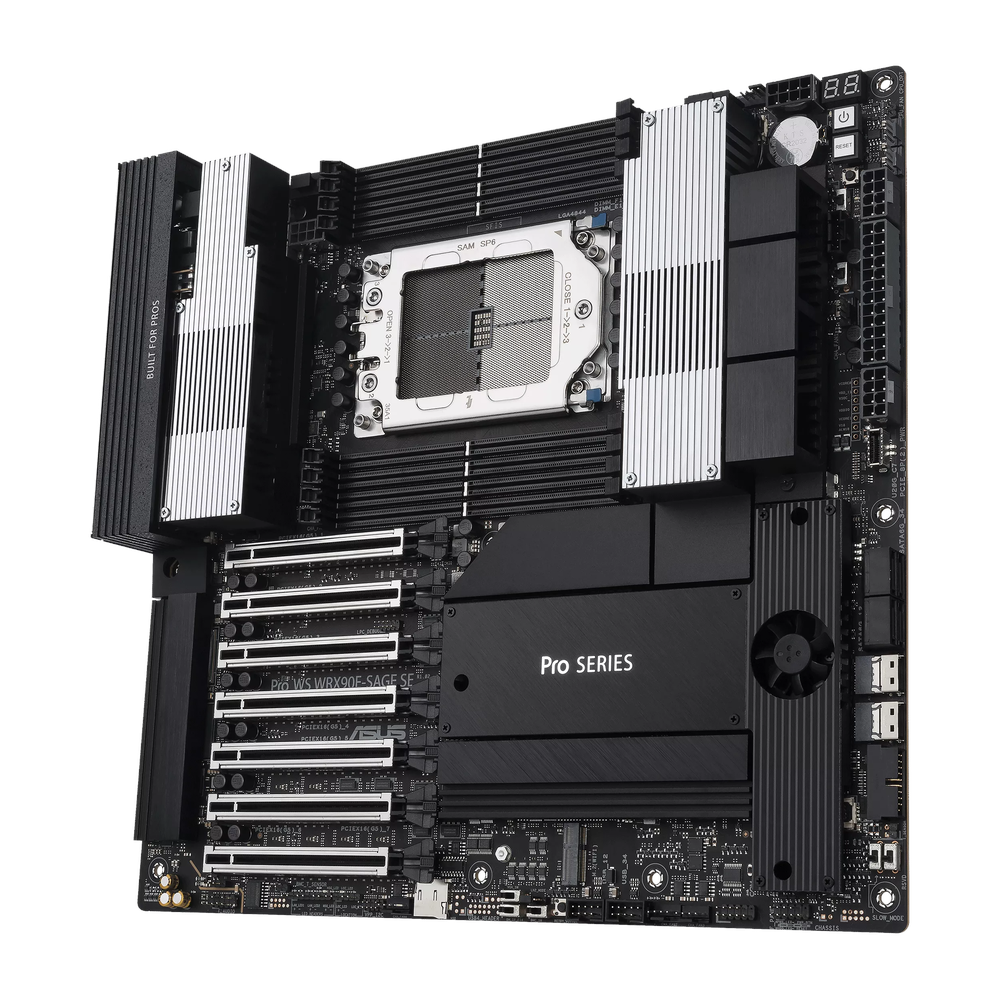

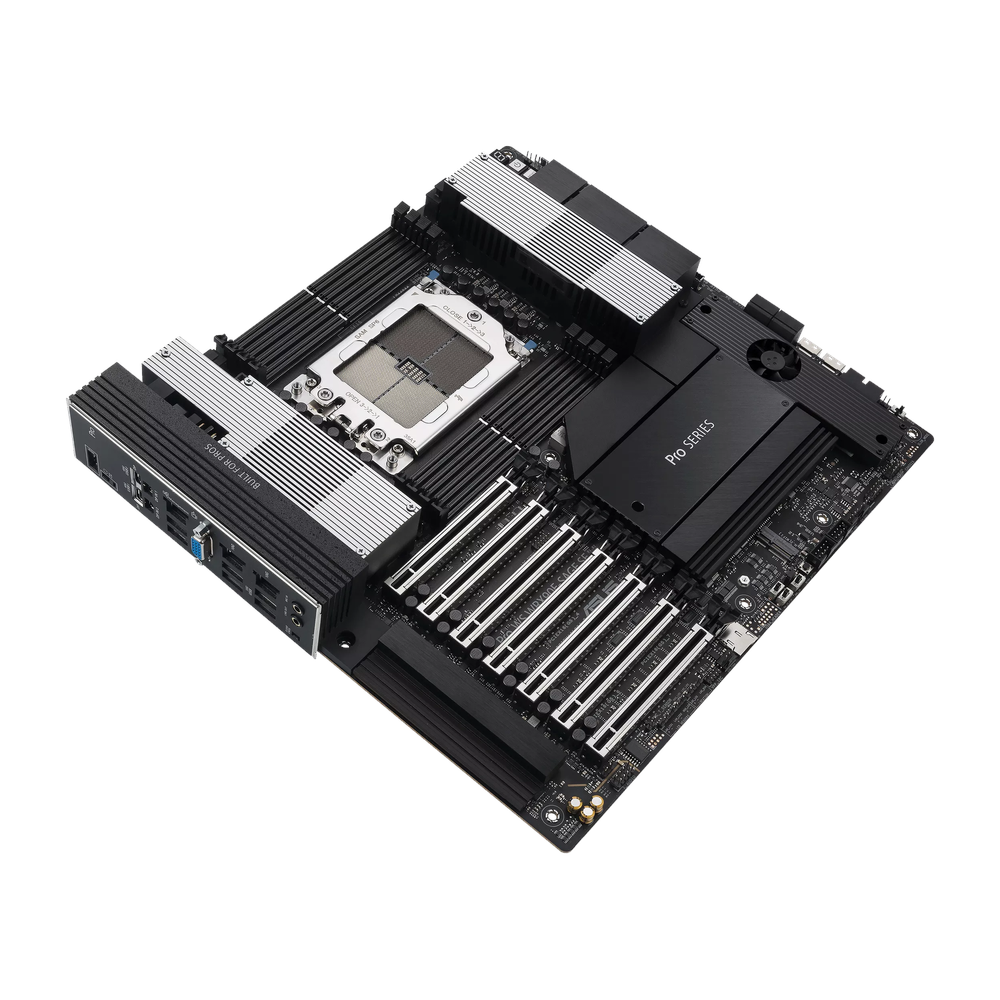

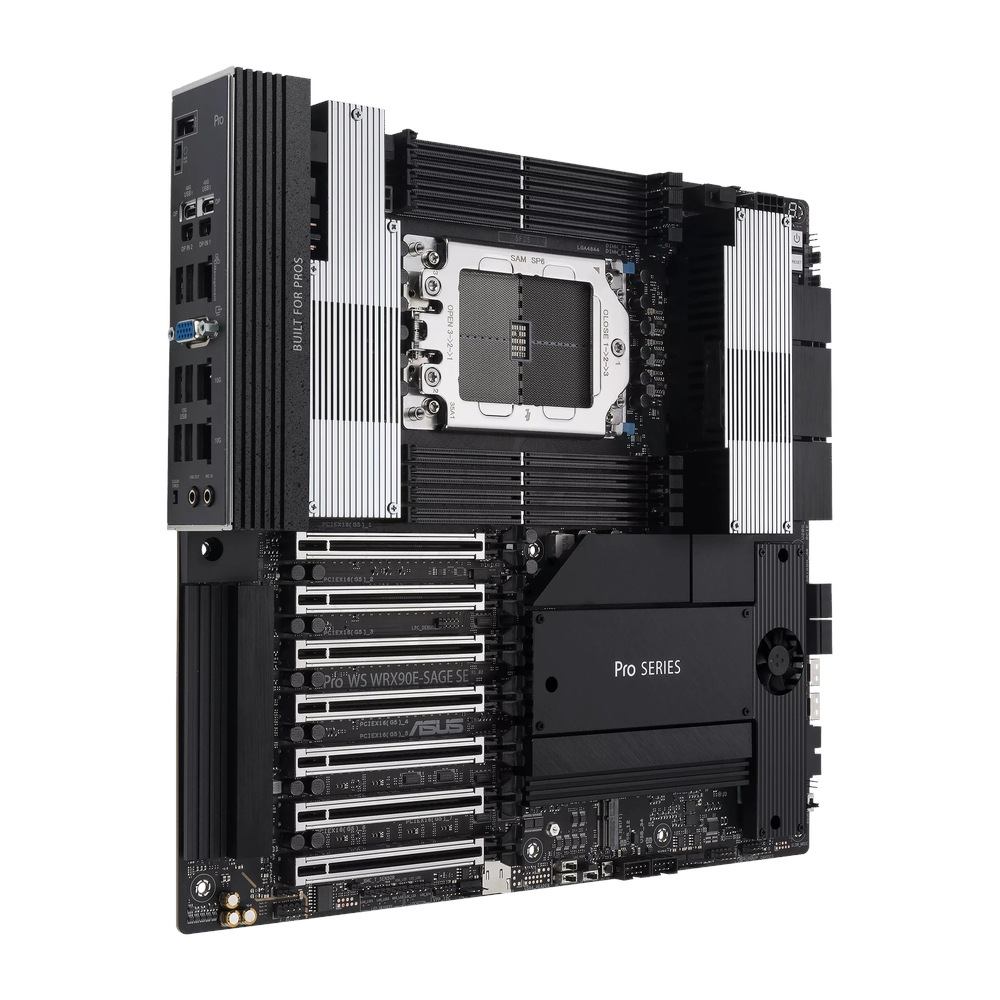

Asus Pro WS WRX90E-SAGE SE Workstation Motherboard, sTR5 Socket, EEB Form Factor, DDR5, PCIe 5.0 With SafeSlot Core+, USB4 40 GBps, Intel Dual 10 GB + Realtek 1 GB Ethernet With Asus LANGuard, Asus 5X Protection III, 1 Year Warranty | 90MB1FW0-M0EAY0

Sale price AED 583.00 Regular price AED 683.00
Inclusive VAT

  • Socket: sTR5
  • Chipset: Intel WRX90 Chipset
  • Processor Support Ryzen Threadripper PRO 7000 WX-Series
  • Ram: DDR5
  • Max Ram: N/A
  • Wireless: N/A
  • Ethernet: Intel Dual 10 GB + Realtek 1 GB Ethernet
  • Form Factor: EEB
  • PCIe x 16: Gen 5
  • 1 Year Warranty

Specifications

  • Wireless
    N/A
  • Chipset
    AMD WRX90 Chipset
  • Internal I/O Connectors
    Cooling:
    1 x CPU Fan (4-pin),
    1 x CPU OPT Fan (4-pin),
    1 x AIO Pump (W_PUMP+),
    5 x Chassis Fan (4-pin),
    2 x VRM Fan (4-pin, with onboard fans),
    1 x M.2 Fan (4-pin, with onboard fan),
    Power:
    1 x 24-pin ATX,
    2 x 8-pin 12V,
    2 x 8-pin PCIe to CPU,
    2 x 8-pin PCIe,
    Storage:
    4 x M.2 (Key M),
    4 x SATA 6 GB/s,
    2 x SlimSAS,
    USB:
    1 x USB 20 GBps connector (supports USB Type-C),
    1 x USB 5 GBps header (supports 2 x USB 5 GBps),
    2 x USB 2.0 headers (support 4 x USB 2.0),
    Misc:
    1 x Chassis Intrusion,
    1 x COM,
    1 x FlexKey button,
    1 x Front Audio (F_AUDIO),
    1 x LN2 Mode Jumper,
    1 x M.2 (Key E),
    7 x ProbeIt Points,
    1 x ReTry Button,
    1 x RSVD Switch,
    1 x Slow Mode Switch,
    1 x Safe Boot Button,
    1 x SPI TPM (14-1 pin),
    1 x Start Button,
    1 x System Panel (10-1 pin),
    1 x Thermal Sensor
  • Graphics Device
    N/A
  • Expansion Slots
    Expansion Slots:
    6 x PCIe 5.0 x16 slots,
    1 x PCIe 5.0 x16 slot (x8 mode),
    Storage:
    4 x M.2 slots,
    2 x SlimSAS slots,
    4 x SATA 6 GB/s ports
  • Memory Slots Support
    8 x DIMM slots, DDR5, ECC Registered Memory,
    8 Channel Memory Architecture
  • Sound
    Realtek ALC1220P Surround Sound High Definition Audio CODEC,
    2 x Audio jacks
  • USB

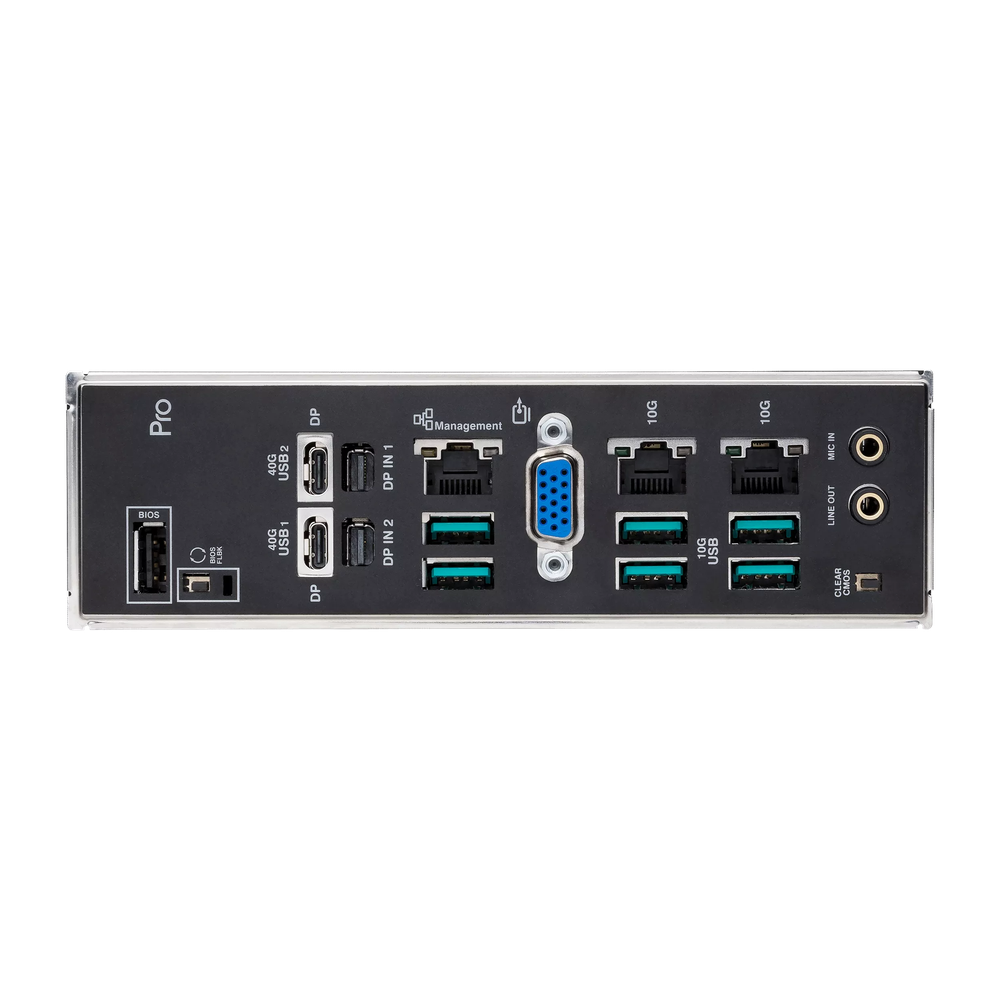

    Rear:
    2 x USB4 40 GBps Type-C (via ASMedia ASM4242),
    6 x USB 10 GBps Type-A,
    1 x USB 2.0 Type-A,
    Front:
    1 x USB 20 GBps connector (supports USB Type-C),
    1 x USB 5 GBps header (supports 2 x USB 5 GBps),
    2 x USB 2.0 headers (support 4 x USB 2.0)
  • Ethernet
    1 x Realtek 1 GB Ethernet (Dedicated management LAN for AST2600),
    1 x Intel® dual 10 GB Ethernet,
    ASUS LANGuard
  • Warranty
    1 Year Warranty
